For a soft drink manufacturer or a beverage startup, the transition to glass is a significant operational step. Glass soda bottles are more than just premium packaging; they are pressure vessels engineered to withstand carbonation, filling line friction, and logistics.
At Smilebottles, we know that choosing the right bottle affects everything from your shelf presence to your shipping costs. Whether you are looking for standard 12 oz glass bottles or a custom mold, understanding the technical specifications is crucial. This guide breaks down the anatomy, dimensions, and business implications of choosing glass beverage bottles for your brand.
The Anatomy of a Glass Soda Bottle: Key Dimensions and Their Variations
When we discuss glass soda bottle dimensions, we aren’t just referring to height and width. A bottle is composed of four distinct zones, each playing a role in performance and aesthetics.
Core Components of a Glass Soda Bottle
The Finish / Neck
The “finish” is the specific shape of the glass at the very top of the bottle. For carbonated drink bottles, this is the most critical area.
Crown Finish: The industry standard (usually 26mm). It features a locking ring that allows a metal pry-off or twist-off cap to crimp securely. If the finish isn’t perfectly flat, the CO2 escapes, and your soda goes flat.
Swing Tops: Used for premium or artisanal soda in glass, requiring a thicker neck to support the wire bail.
Screw Caps (ROPP): Common in the 1 liter glass water bottle market, but less common for high-carbonation soda due to pressure retention issues compared to crowns.
Glass Bottle Caps: Buyers must ensure their caps match the finish spec (GPI 600 or MCA) exactly to prevent “blow-off” during warm storage.
The Shoulder
The shoulder creates the transition from the body to the neck.
Sloped Shoulders: Common in soft drink bottles like ginger beer, allowing for easy pouring.
Rounded Shoulders: Typical of the classic Coca-Cola bottle size style, which offers high structural integrity against internal pressure.
The Body
This is your billboard. The straight wall area of the body determines the size of your label.
Label Panel: If you are using adhesive labels, the body must be perfectly cylindrical.
Embossing: Custom glass soda bottles often use this area for embossed logos, which requires a thicker glass wall.
The Heel & Base (Push-up)
The Punt (Push-up): The bottom of a soda bottle is pushed inward. This distributes the internal pressure of the carbonation toward the walls, preventing the bottom from blowing out.
Stippling: The small dots on the base (knurling) prevent the hot glass from sticking to the conveyor belt during manufacturing and add grip on the retail shelf.
Visual Description: Imagine a vertical cross-section of a bottle. The Finish is the reinforced ring at the top. The Neck tapers down to the Shoulder. The Body is the wide, straight section holding the liquid. The Heel curves into the Base, which has a concave indentation (Push-up) for strength.
Standard Glass Soda Bottle Dimensions
In the global market, sizes vary between the Imperial system (US) and the Metric system (EU/Asia). As a manufacturer, Smilebottles produces both.

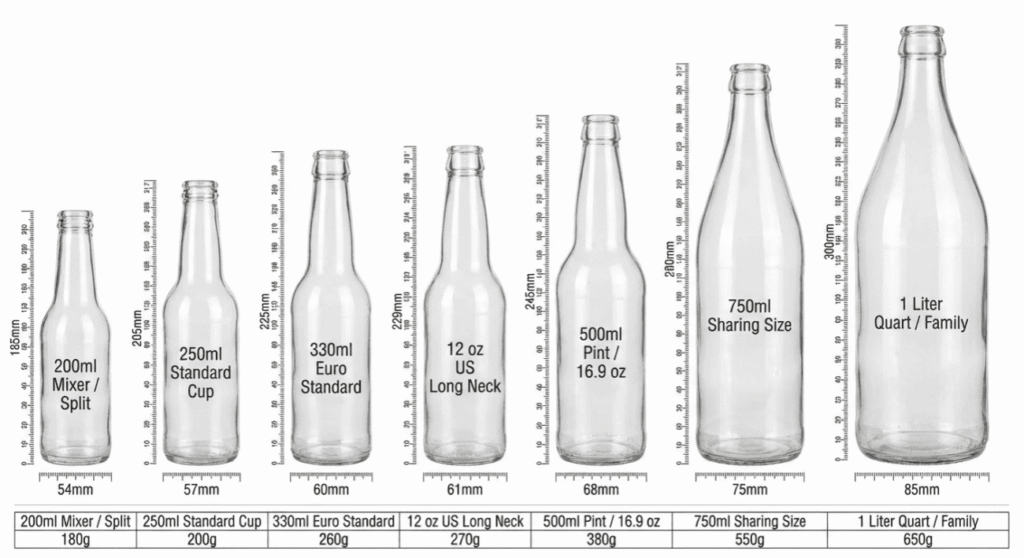

Here is a reference table for the most standard glass soda bottle size options we supply. Note that weights are for empty glass soda bottle stock.
Nominal Capacity | Common Name | Approx. Soda Bottle Height | Approx. Diameter | Weight (Empty) |
200ml Glass Soda Bottle | Mixer / Split | 185mm (7.3 inches) | 54mm | 180g |
250ml (8.4 oz) | Standard Cup | 205mm (8.1 inches) | 57mm | 200g |
330ml Glass Bottles | Euro Standard | 225mm (8.8 inches) | 60mm | 260g |
12 oz Glass Bottles | US Long Neck | 229mm (9.0 inches) | 61mm | 270g |
500ml Glass Bottles | Pint / 16.9 oz | 245mm (9.6 inches) | 68mm | 380g |
750ml | Sharing Size | 280mm (11.0 inches) | 75mm | 550g |
1 Liter Glass Bottles | Quart / Family | 300mm (11.8 inches) | 85mm | 650g |
Note: These are average dimensions. A custom design will vary.
Variations in a Glass Soda Bottle Height and Shape
While the volume is fixed, the shape is flexible. The soda glass bottle you choose changes how customers perceive your product.
Slim vs. Stubby
Slim (Long Neck): The 12 oz glass soda bottles standard (Long Neck) dominate the market. It is easy for a consumer to hold and easy for bartenders to grab from a well.
Stubby: A shorter, wider bottle (often used for specialized craft sodas or kombucha). How big are soda bottles in stubby format? They might be only 6 inches tall, but much wider (70mm+). These are harder to tip over on a filling line but take up more horizontal shelf space.
Tall Bottles for Premium Positioning
Higher-end brands often request elongated necks. A taller bottle creates a visual illusion of larger volume and elegance.
Comparison: How tall is a water bottle in the premium sector? Often 12+ inches for 750ml, towering over standard sodas.
Short Bottles for Vending
If you sell through vending machines, you are constrained by the machine’s mechanics.
Soda bottle dimensions for vending usually cannot exceed 9.5 inches in height or 2.6 inches in diameter.
Industry Standards and Regulatory Compliance Of Glass Soda Bottles
When importing wholesale glass soda bottles, you must ensure the glass meets the safety standards of your destination country.
International Glass Bottle Standards
GPI (Glass Packaging Institute) and ISO
Most bottle finishes follow GPI standards (e.g., GPI 26-600 for crown caps). If your bottle manufacturer does not follow these strict tolerances, your glass bottle caps will not seal, leading to spoilage.
FDA and Heavy Metals
For the US market, glass bottles are generally considered GRAS (Generally Recognized as Safe). However, the decoration is critical.
Lead and Cadmium: If you are importing painted or printed bottles (ACL – Applied Ceramic Labeling), the ink must not contain heavy metals that could leach or contaminate the recycling stream.
Regional Differences in Bottle Requirements
North America (USA/Canada)
The market relies heavily on the 12 oz glass bottles and 8 oz glass bottles.
Volume: Labels must display fluid ounces.
Pallets: Warehouses typically use 40×48 inch pallets. Your bottle boxes must fit this footprint.
Europe (EU)
The market standard is330ml glass bottles and 500ml glass bottles.
Volume: Must be metric.
Pallets: Warehouses use Euro-pallets (1200x800mm). This affects how we stack the empty glass soda bottle layers for export.
Returnables: Europe has a strong infrastructure for returnable/refillable bottles, which requires much heavier glass (scuff bands) to survive multiple trips.
Importance of Compliance for Beverage Brands
Working with a non-compliant manufacturer is a liability. If customs finds high lead levels in a green glass soda bottle pigment, the entire shipment will be destroyed. At Smilebottles, we provide SGS or TUV testing reports to prove our glass is food-safe and compliant with both FDA and EU regulations.
How Glass Soda Bottle Height Influences Business Decisions
The physical soda bottle dimensions ripple through your entire business model.
Branding and Shelf Impact
Premium vs. Commodity
Taller bottles generally command a higher price point. If you place a sleek 330ml glass bottle next to a standard aluminum can, the glass bottle looks more valuable.
The “Contour” Effect
Many brands try to mimic the Coca-Cola glass bottle dimensions.
How tall is a 20 oz Coke bottle(plastic)? About 9 inches.
How big is a soda bottle in the classic contour glass style? It is actually quite small (6.5 oz or 8 oz).
Lesson: You don’t need a huge volume to make a big impact. A unique shape (waisted, square, or embossed) makes your soft drink bottles recognizable even without a label.
Logistics, Storage, and Transportation
The Weight Factor
Glass is heavy. A 1 liter glass bottle full of liquid weighs nearly 1.5kg.
Carton Sizing: If you choose a tall, thin bottle, your cartons must be taller. This might reduce the number of layers you can fit in a shipping container.
Breakage: Bottles with a high center of gravity (very tall, small base) are unstable. They tip over easily on filling lines and in trucks. We recommend a balanced height-to-base ratio.
The 2 Liter Bottle Dilemma
We are often asked about the 2-liter bottle dimensions in glass.
Diameter of 2l bottle(Plastic): ~4.3 inches.
2 liter bottle height(Plastic): ~12.6 inches.
Why not glass? A 2 liter bottle size in glass would weigh over 3kg when filled. It is too heavy for a consumer to pour safely and is a dangerous pressure bomb if dropped. We strongly advise clients to switch to 1 liter glass bottles or 750ml for large formats.
Filling Line Compatibility
Before ordering custom glass soda bottles, talk to your co-packer.
Filling Speed: Standard shapes (cylindrical) run fastest. Irregular shapes (square, flask) require special pucks or slower line speeds.
Capping: If your soda bottle height varies by more than 1-2mm, the capping machine will either crush the bottle or fail to seal it. Smilebottles guarantees tight dimensional tolerances to prevent this.
Why Smilebottles Excels in Glass Soda Bottle Manufacturing
You have many options for glass beverage bottles, but Smilebottles offers specific advantages for the soda industry.
Advanced Manufacturing Capabilities
We use NNPB (Narrow Neck Press and Blow) technology. This allows us to make lightweight glass bottles that are just as strong as heavier ones but cheaper to ship. We control the wall thickness distribution precisely, ensuring no weak spots where pressure could cause an explosion.
Customization and Design Support
Do you want to create the next iconic shape?
We can replicate the cola bottle size feel without infringing on trademarks.
We can produce specific green glass soda bottle runs for ginger ale brands or Amber glass for root beer.
We can adjust the bottle neck finish to accept crown caps or resealable screw caps.
Quality Control and Sustainability
Our glass is 100% infinitely recyclable.
Cullet Use: We use recycled glass (cullet) in our furnace, which lowers the melting temperature and reduces our carbon footprint.
Pressure Testing: Every batch of carbonated drink bottles undergoes internal pressure testing to ensure it can handle 3.0 to 4.0 volumes of CO2.
FAQ About Glass Soda Bottles
Q1: What is the standard soda bottle height?
A1: The standard long-neck 12 oz glass bottle is approximately 9 inches (229mm) tall. However, stubby versions can be as short as 6.5 inches.
Q2: How many oz are in a Gatorade bottle compared to glass soda bottles?
A2: A standard Gatorade bottle is 20 oz or 32 oz. In glass, we rarely exceed 12 oz or 16 oz for single-serve soda due to weight. However, we do manufacture 1 liter glass bottles (33.8 oz) for sharing sizes.
Q3: Can I get a 16,9 oz water bottle in glass?
A3: Yes. 16.9 oz is exactly 500ml. We supply 500ml glass bottles commonly used for premium water and craft sodas.
Q4: Why can’t I find 2 liter bottle dimensions for glass?
A4: A 2 liter bottle size in glass is unsafe for carbonated beverages due to the heavy weight and explosion risk if broken. We recommend using 1 liter glass bottles instead.
Q5: How tall is a water bottle vs a soda bottle?
A5: A 1liter glass water bottle is often taller (12+ inches) and more slender than a soda bottle because it does not need to withstand high carbonation pressure, allowing for a more elegant, thin silhouette.
Q6: Are green glass soda bottle options available?
A6: Yes, Smilebottles manufactures Flint (clear), Amber, and Green glass. Green is excellent for UV protection and branding for ginger ales or lemon-lime sodas.
Conclusion
The anatomy of your bottle defines your brand’s future. A 12-oz glass bottle fits the US vending network. A 330ml glass bottle opens up the European market. A 1-liter glass bottle elevates your product to a dinner table staple.
Don’t guess on specs. Don’t assume a 16,9 oz water bottle mold can hold carbonation. Work with a manufacturer who understands the science of soda in glass. Whether you need a stock empty glass soda bottle solution or a fully custom soda glass bottle design, Smilebottles has the expertise and the molds to get you started. Contact Smilebottles today to discuss your glass soda bottle dimensions and get a quote
